- Gasless MIG Welding
- Thermal Overload Protection
- Stepless Wire Speed Control
- Operates on 120V/20A household current
- Multiple voltage settings for a variety of materials
- 1 Year Limited Warranty

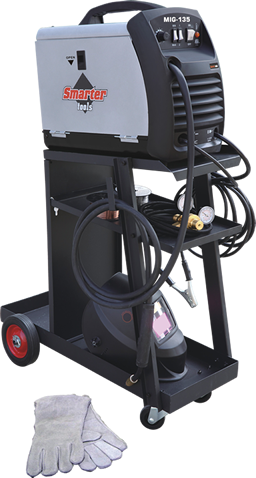

- The Smarter Tools MIG-135 Welding Kit is the perfect choice to do projects and repairs around the home, farm and auto body shop. This MIG welder will produce a cleaner bead with less splatter than a regular flux core wire welder. The welder runs off of a standard 120 volt household outlet and produces an output range of 20-135 amps. It uses standard flux-core wire (E71-GS) or steel wire 0.6mm, 0.8mm in diameter and has 4 heat settings to easily adjust the output according to the thickness of metal you are welding. The welder can easily switch between gas-less flux-cored welding for deep penetration on thick steel or gas-shielded MIG welding on thin-gauge steel, stainless steel or aluminum. Package includes: MIG 135 welding power source, MIG torch with 8ft. (2.44m) lead, ground clamp with10ft. (3m) lead, 2 extra contact tips, a 1lb spool of flux wire, a 2lb spool of MIG wire, 0.6mm and 0.8mm (0.025 in. and 0.031 in.) drive roll, 0.9mm and 1.0mm (0.035 - 0.040 in.) drive roll, an adjustable gas regulator with a hose, ST-1S Auto-darkening welding helmet, gloves, users manual, and welding cart.
- Wide 20 - 135 Amp welding output range is perfect for completing projects and repairs around the home, farm, or basic auto-body welding
- Step-less wire speed control means more reliable welds
- Thermal overload protection ensures lasting performance for years to come
- Multiple voltage settings for a variety of materials
- Tool-less Design for ease of use
- Operates on a standard 120V/20A household outlet
- 3/16 in. single-pass or 5/16 in. multi-pass welding capacity with flux-cored wire
- Easily switches between gas-less flux-cored welding for deep penetration on thick steel or gas-shielded MIG welding on thin-gauge steel, stainless steel or aluminum
- Ideal for welding steel up to 1/4'' thick.
- MIG 135 welding power source
- MIG torch with 8ft. (2.44m) lead
- Ground clamp with 10ft. (3m) lead
- 2 extra contact tips
- 1lb spool of flux wire and 2lb spool of MIG wire
- 0.6mm and 0.8mm (0.025 in. and 0.031 in.) drive roll
- .9mm and 1.0mm (0.035 - 0.040 in.) drive roll
- Adjustable gas regulator with hose
- ST-1S Auto-darkening welding helmet
- Gloves, users manual, and welding cart
- Welding Range
- 20-135A
- Rated Duty Cycle
- 20% @ 90A
- Input Voltage and Hertz
- 115V/60Hz
- Phase
- One
- Wire Thickness
- 0.023'' - 0.030''
- Max Weld Thickness (Flux)
- 5/16'' Steel
- Max Weld Thickness (MIG)
- 10 gauge sheet metal
- Thermal Overload Protection?
- Yes
- Stepless Wire Speed Control?
- Yes
- Length
- 26.7 in.
- Width
- 13.7 in.
- Height
- 41.3 in.
- Weight
- 79lbs.
